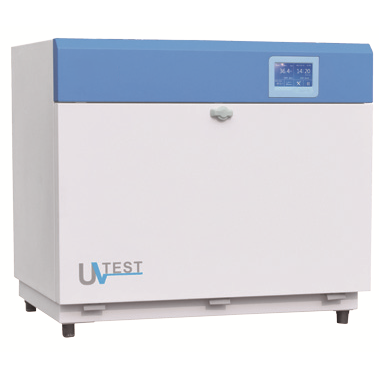

UV Test Chamber

Touch Screen Microprocessor Controller (with timing function)

Product Features Display

- 9.7 inch touch screen, menu type interface could set parameters fast, which is easy to understand and operation.
- BPT sensor, cabinet temperature and rain cycleetc, which can be visually

settingand displaying.

light source

- With 4 pieces of 20W ultraviolet lamp, more stable and the life of the lamp is up to 5000 hours.

Controller

- B-UV-S series provide 3 spray headers which can meet the uniformity of rainfall for flat sample rack.
- Radiation intensity adjustment with optional RM-20 irradiance meter which by

manual adjustment.

- Blackboard temperature self-control by test set value, to meet user for lighting,

condensation, spray, temperature and other aging test chamber.

Sample shelf

- Build-in 4 pieces of 70x150 flat sample racks, the users can test for three- dimensional or flat samples.

Specifications

Model		B-UV-I	B-UV-II
Temperature Range	Light cycle	45℃～ 80℃
	Condensation cycle	40℃～ 60℃
Light source	Type	UVA or UVB fluorescent ultraviolet lamp
	Power	40W/pc, total 8pcs
	Wavelength range	Standard with UVA@340nm Optional@351nm or UVB@313nm
	Irradiance	Irradiance automatic control
Calibration function		Have
Spraying function		No	12-hole sample spraying device
Sample shelf size		48 pcs standard sample test shelf（75x150mm）
Center distance between sample and lamp		50mm±3mm
Exterior dimension (WxDxH,mm)		1200x450x1500
Cycle mode		Dark, light, spray, condensate set multi-cycle automatic control
Light control		Irradiance automatic monitoring and control
Electrical requirement		220V 50Hz
Power consumption		2000W

Meeting Standards

● GB/T16422-3	● GB/T14522	● ISO 4892-3	ASTM G154	ASTM D4587
● ISO 11507	ASTM D4329	ASTM D5208	SAE J2020	● M 5982-1990
