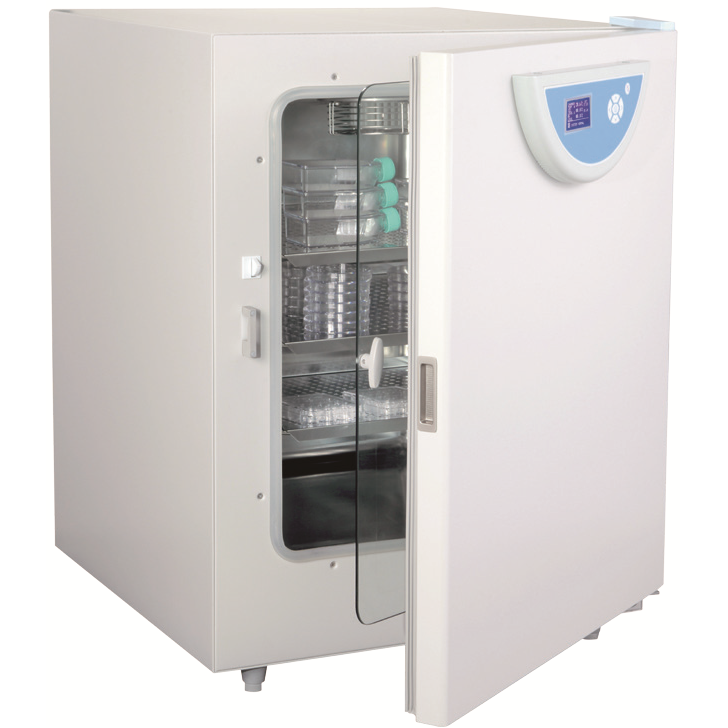

CO2 Incubator (Medium)

With Infrared CO2 Sensor

Features

Faster CO2 concentration Restoration Speed.
Imported Infrared sensor can keep CO2 concentration stability and uniformity when door open frequently.
Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
Microorganism filter at inlet provides 99.99% filtration of bacteria and dust (Ф<0.3μm)

and supplies pure CO2 into the incubator.

Door temperature controller prevents dewfall on glass door of incubator effectively.
Independent audible and visible temperature-limiting alarm system ensures experiments run safely.
Alarm function for temperature difference, CO2 over concentration and concentration

difference,door open time, UV working status.

Auto-controller of fan speed to prevent damage to the samples.
PID controller with LCD screen ensures precise and reliable control.
Two-layer stacking available.
UV light system for periodic sterilization of chamber.

Options

RS485 Connector: Easy to download and save all the data via RS485 into computer, and identify problems in time.
High effective filter provides filtration of bacteria and dust.
CO2 pressure releasing valve.

Humidity display system.

Specifications

Model	BPN-40CRH	BPN-80CRH	BPN-150CRH	BPN-190CRH	BPN-240CRH	BPN-500CRH
Chamber Volume	40L	80L	155L	190L	240L	500L
Temperature Range	RT+5℃ ~55℃
Electrical Requirement	220V 50Hz
Power Consumption	350W	500W	750W	750W	950W	1450W
Ambient Temperature	+5~30℃
Heating Method	Air-jacketed, PID Control
Temperature Resolution	0.1
Temperature Stability	±0.1℃
Temperature uniformity(37℃)	±0.3℃
CO2 Range	0~ 20% V/V
CO2 Control Resolution	±0.1%(IR sensor)
CO2 Recovery	(Door open 30s,recovery to 5%) ≤ 3min
Temperature Recovery	(Door open 30s,recovery to 37℃ ) ≤ 8min
Humidity Method	Natural vaporization ≥ 90%
Shelves	2(pcs)		3(pcs)	3(pcs)	3(pcs)	3(pcs)
Interior Dimension (W×H×D)mm	400×286×350	400×450×500	480×530×610	520×530×690	600×630×670	700×650×1100
Exterior Dimension(W×H×D)mm	590×440×576	590×687×790	670×767×880	708×710×1030	788×837×940	880×860×1500
Sterilization method	18hrs (90°C moist heat disinfection)
