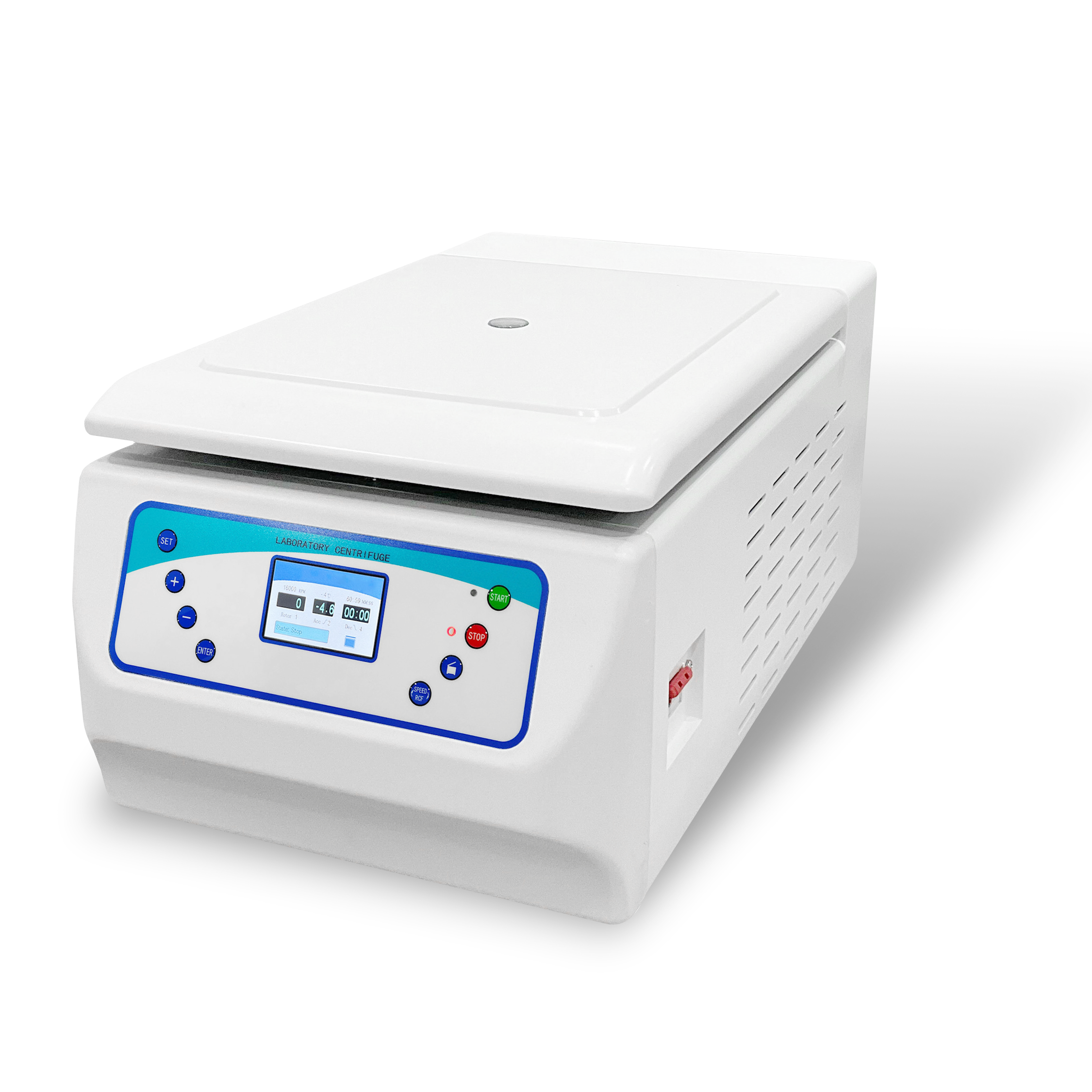

Tabletop High Speed Refrigerated Centrifuge B3H16R1
Feature:
- Power coated housing. Stainless steel chamber with guarding ring.
- Compact design saves your working desk space.
- Reliable drive system. Variable frequency motor maintenance free.
- Electronic safety lock prevent cover opening during centrifugation.
- Manually lid open in case of failure or emergency.
- Pneumatic spring supports prevent falling of lid.
- Pre-cooling during standstill. CFC free refrigeration system.
- Recall of last settings. Parameters can be changed during operation.
- Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, error display.
- The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
- Special rotor connector which makes it easy to load and unload the rotor.
- Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
Technical data
Model |
B3H16R1 |
Max. RPM/RCF for angle rotor |
16000rpm / 17446×g |
Max. Capacity for angle rotor |
24×1.5/2.2ml, 12×5ml |
Speed Increment |
1rpm |
Speed Accuracy |
±20rpm |
Temp. Range |
-20℃~+40℃ |
Temp Accuracy |
±2℃ |
Timer Range |
0~99min59s |
Acc / Dec rates |
10/10 |
Power Supply |
AC220V / 50~60Hz |
Power Requirement |
668W |
Noise |
<55db |
Display |
LCD screen |
Machine Body |
Plastic and metal frame |
Net Weight (without rotor) |
36kg |
Machine Dimension(L×W×H) |
340×590×310mm (L×W×H) |
Rotor List
Angle Rotor |
AAR1205 |
AA12X5 |
|
|
|
Max.Capacity |
12×0.5ml |
12×5ml |
Max. Speed |
16000rpm |
13000rpm |
Max. RCF |
13034×g |
12765×g |
Angle |
45° |
50° |
ØxL(mm) |
8.4×28.5mm |
14×51mm |
Angle Rotor |
AAR1215-1 |
AAR1215-2 |
AAR2415-1 |
AAR2415-3 |
||||
|
|
|
|
|
||||
Max.Capacity |
12×1.5/2.2ml |
12×1.5/2.2ml |
24×1.5/2.2ml |
24×1.5/2.2ml |
||||
Max. Speed |
16000rpm |
16000rpm |
13000rpm |
13000rpm |
||||
Max. RCF |
17446×g |
17446×g |
16245×g |
16245×g |
||||
Angle |
45° |
45° |
45° |
45° |
||||
ØxL(mm) |
11×39mm |
11×39mm |
11×39mm |
11×39mm |
||||
Adaptor |
A20136 |
12×1×0.5ml |
A20136 |
12×1×0.5ml |
A20136 |
24×1×0.5ml |
A20136 |
24×1×0.5ml |
A20137 |
12×1×0.2ml |
A20137 |
12×1×0.2ml |
A20137 |
24×1×0.2ml |
A20137 |
24×1×0.2ml |
-
