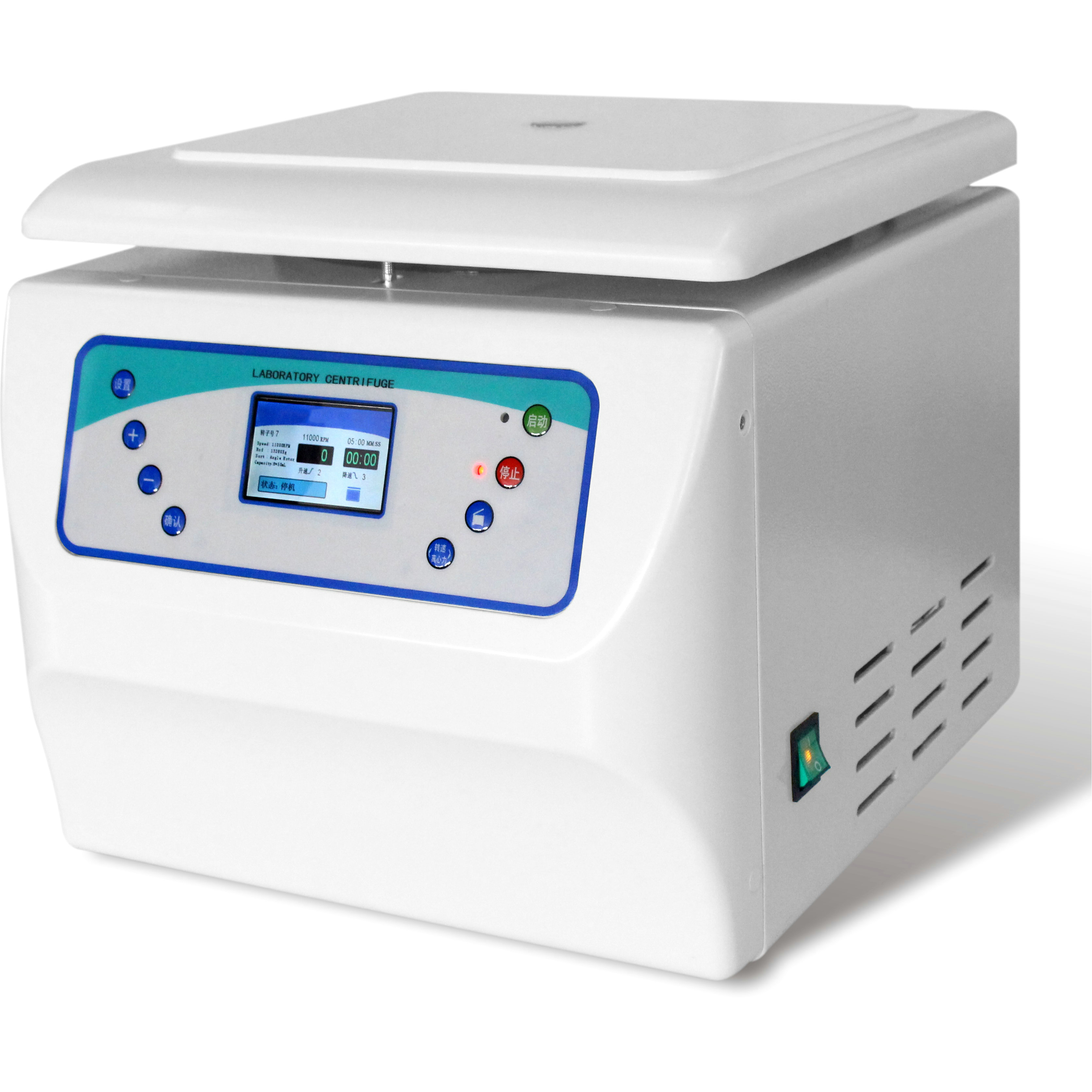

BXZ-16T

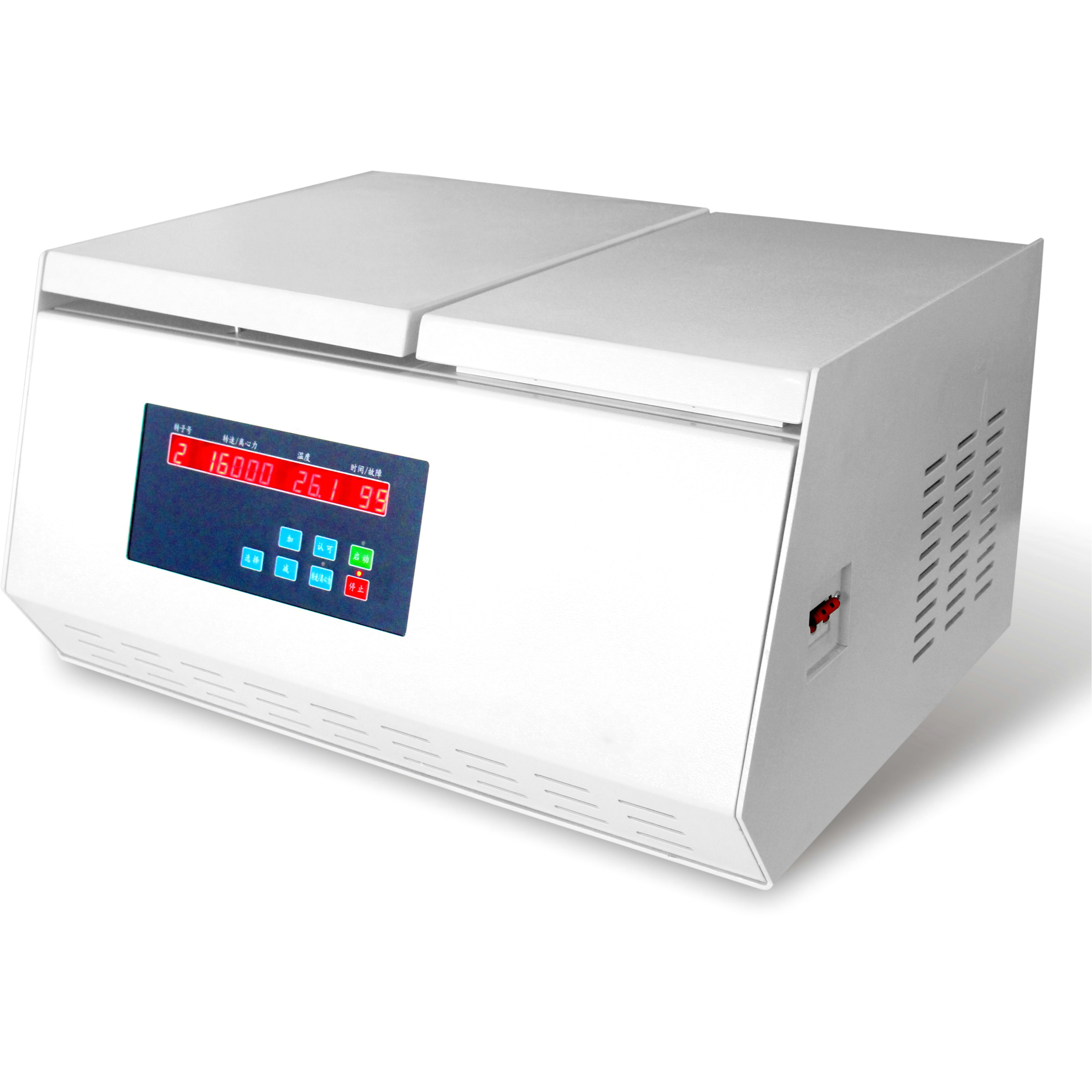

BTGL-16M

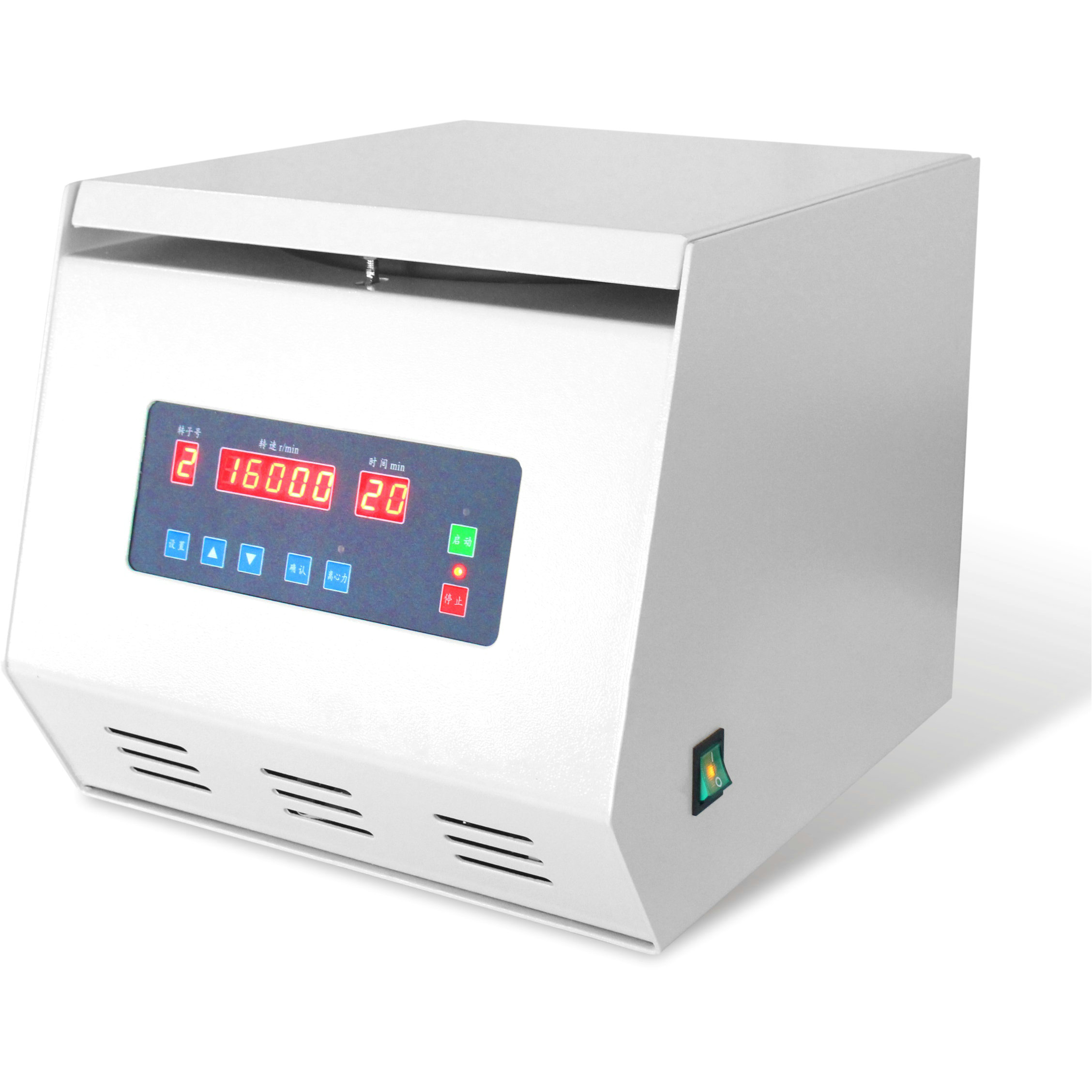

BTG-16WS

넳 넲

Tabletop High Speed Centrifuge BTGL16MB, BTGL16M, BXZ-16T, BTG16WS

It is a compact bench-top microliter centrifuge for medical and biological research, molecular diagnostics, biochemistry, immunology and cell technologies. It can be used for extracting RNA/DNA samples, separation of cell suspensions and other micro quantitative analyses.

Feature:

Power coated housing. Stainless steel chamber with guarding ring.
Reliable drive system. Variable frequency motor maintenance free.
Electronic safety lock prevent cover opening during centrifugation.
Manually lid open in case of failure or emergency.
Pneumatic spring supports prevent falling of lid.
Pre-cooling during standstill. CFC free refrigeration system (only for refrigeration models).
Recall of last settings. Parameters can be changed during operation.
Microprocessor control of all functions: speed, time, temperature, *acceleration/deceleration, RCF, *program memory, error display.
The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
Special rotor connector which makes it easy to load and unload the rotor.
Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
* Optional: Automatic lid opening at the end of run.
* Optional: Short spin.
* Optional: Rotor identification.
* Optional: Program memory for BTGL16MB.

Technical data

Model	BTGL16MB	BTGL16M	BXZ-16T	BTG16WS
Max. RPM/RCF for angle rotor	16000rpm / 21627×g
Max. RPM/RCF for swing rotor	6000rpm / 4492×g		-	-
Max. Capacity for angle rotor	4×100ml, 48×1.5/2.2ml
Max. Capacity for swing rotor	4×10ml, 48-well plates		-	-
Speed Increment	10rpm		50rpm
Speed Accuracy	±20rpm
Temp. Range	-20℃~+40℃		-	-
Temp. Accuracy	±2℃		-	-
Timer Range	0min~99min59s	1min~99min	0min~99min59s	1min~99min
Acc / Dec rates	10/10	-	10/10	-
Program Memory	*15	-	-	-
Power Supply	AC220V / 50~60Hz
Power Requirement	1KW		500W
Noise	<55db
Display	LCD Screen	Digital display	LCD Screen	Digital display
Machine Body	Plastic and metal frame	Metal frame	Plastic and metal frame	Metal frame
Net Weight (without rotor)	58kg	66kg	25kg	26kg
Machine Dimension（L×W×H）	620×500×350mm	620×480×350mm	350×410×340mm	330×390×330mm

Rotor List

Angle Rotor	AAR4802	AAR1205	AAR4805

Max.Capacity	4×8×0.2ml	12×0.5ml	48×0.5ml
Max. Speed	14000rpm	16000rpm	12000rpm
Max. RCF	15418×g	13034×g	11876×g
Angle	45°	45°	45°
ØxL(mm)	6.5×16mm	8.5×28.5mm	8.5×28.5mm

Angle Rotor	AAR1215-1		AAR1215-2		AAR2415-1		AAR2415-3

Max.Capacity	12×1.5/2.2ml		12×1.5/2.2ml		24×1.5/2.2ml		24×1.5/2.2ml
Max. Speed	16000rpm		16000rpm		15000rpm		15000rpm
Max. RCF	17446×g		16930×g		21627×g		21627×g
Angle	45°		45°		45°		45°
ØxL(mm)	11×39mm		11×39mm		11×39mm		11×39mm
Adaptor	A20136	12×1×0.5ml	A20136	12×1×0.5ml	A20136	24×1×0.5ml	A20136	24×1×0.5ml
	A20137	12×1×0.2ml	A20137	12×1×0.2ml	A20137	24×1×0.2ml	A20137	24×1×0.2ml

Angle Rotor	AAR4815		AA12X5	AA1210	AA2410

Max.Capacity	48×1.5/2.2ml		12×5ml	12×10ml	24×10ml
Max. Speed	12000rpm		13000rpm	12000rpm	10000rpm
Max. RCF	15276×g		12765×g	12698×g	11291×g
Angle	45°		50°	62°	62°
ØxL(mm)	11×39mm		14×51mm	16.5×78mm	16.5×78mm
Adaptor	A20136	48×1×0.5ml	-	-	-
Adaptor	A20137	48×1×0.2ml	-	-	-

Angle Rotor	AA1215		AA4X50		AA6X50-1		AA4100

Max.Capacity	12×15ml		4×50ml		6×50ml		4×100ml
Max. Speed	10000rpm		13000rpm		11000rpm		10000rpm
Max. RCF	11548×g		16661×g		13296×g		10944×g
Angle	62°		61°		61°		62°
ØxL(mm)	16.5×103mm		29.5×96mm		29.5×96mm		38×110mm
Adaptor	A10138	12×1×10ml	A20114	4×1×15ml	A20114	6×1×15ml	-
	-		A20115	4×1×10ml	A20115	6×1×10ml
			A20116	4×1×5ml	A20116	6×1×5ml
			A20117	4×1×1.5/2ml	A20117	6×1×1.5/2ml

Swing Rotor	SG4X10	SG2248
only for refrigeration models
Bucket No.	B20238	B10237
Max.Capacity	4×10ml	2×2×48
Max. Speed	6000rpm	4000rpm
Max. RCF	4492×g	1504×g
ØxL(mm)	16.5×78mm	108×54×29mm
