Tabletop High Speed Refrigerated Centrifuge BTGL-21MB

It is widely used in clinical medicine, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.

Feature:

Pre-cooling during standstill. CFC free refrigeration system.
Microprocessor controls all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
Rotor identification prevents rotor from over speed.
Gyroscope imbalance detection.
Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
* Optional: Automatic lid opening at the end of run.

Technical data

Model	BTGL-21MB
Max. RPM/RCF for angle rotor	21000rpm / 32898×g
Max. RPM/RCF for swing rotor	5000rpm / 4633×g
Max. Capacity for angle rotor	6×250ml, 48×1.5/2.2ml
Max. Capacity for swing rotor	4×1000ml, 96×5ml
Speed accuracy	±10rpm
Temp. range	-20℃~+40℃
Temp accuracy	±1℃
Timer range	0~99h59min59s / continuous
Acc / Dec rates	10/10
Program memory	40/*1000
Short spin function	√
Power supply	AC220V / 50~60Hz
Power requirement	1.75KW
Noise	<65db
Display	LCD touch screen
Machine body	Metal frame
Net weight (without rotor)	110kg
Machine dimension（L×W×H）	695×571×474mm

Rotor List

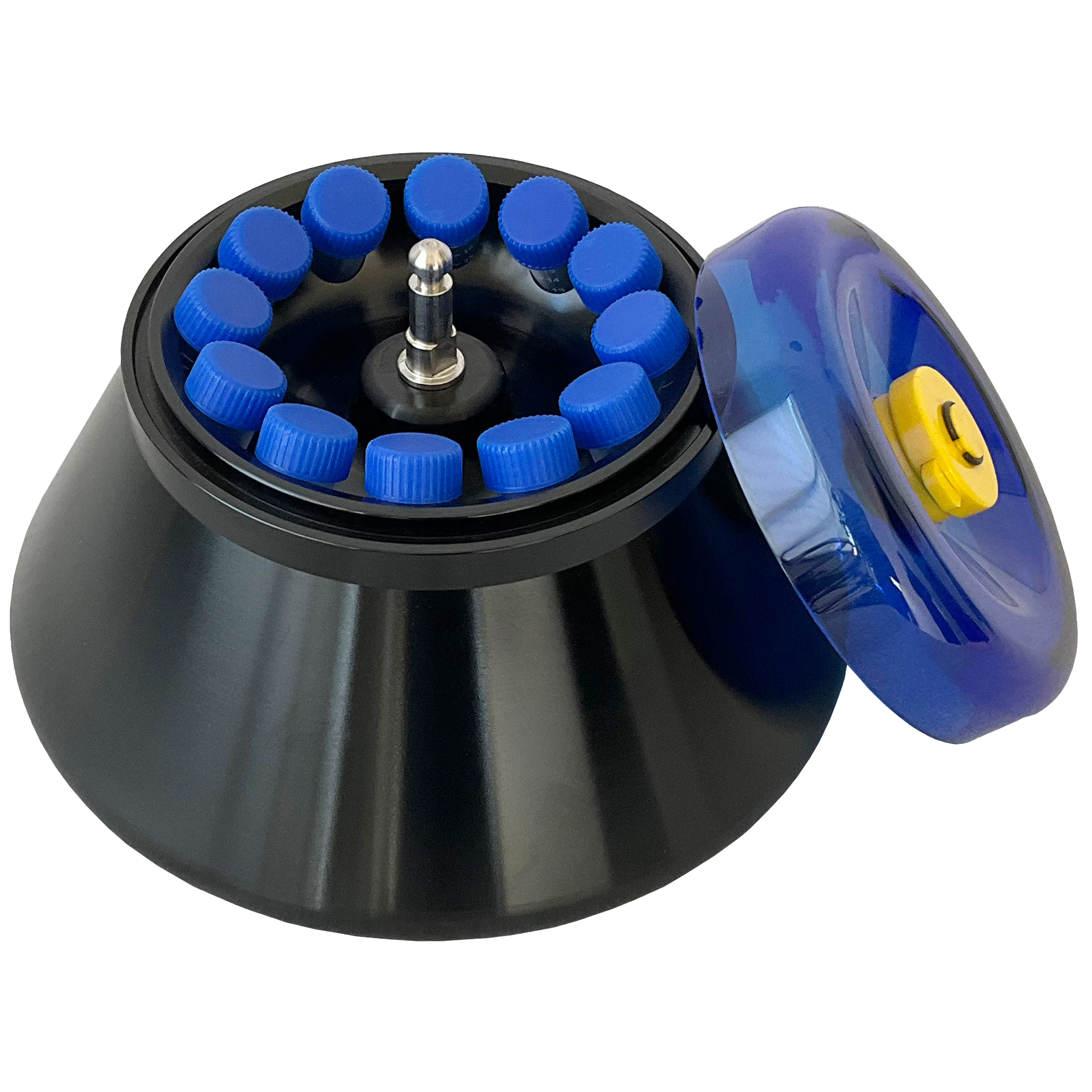

Angle Rotor	AAR4802	AAR1205	AAR4805

Max.Capacity	4×8×0.2ml	12×0.5ml	48×0.5ml
Max. Speed	14000rpm	21000rpm	14000rpm
Max. RCF	15418×g	22453×g	16164×g
Angle	45°	45°	45°
ØxL(mm)	6.5×16mm	8.5×28.5mm	8.5×28.5mm

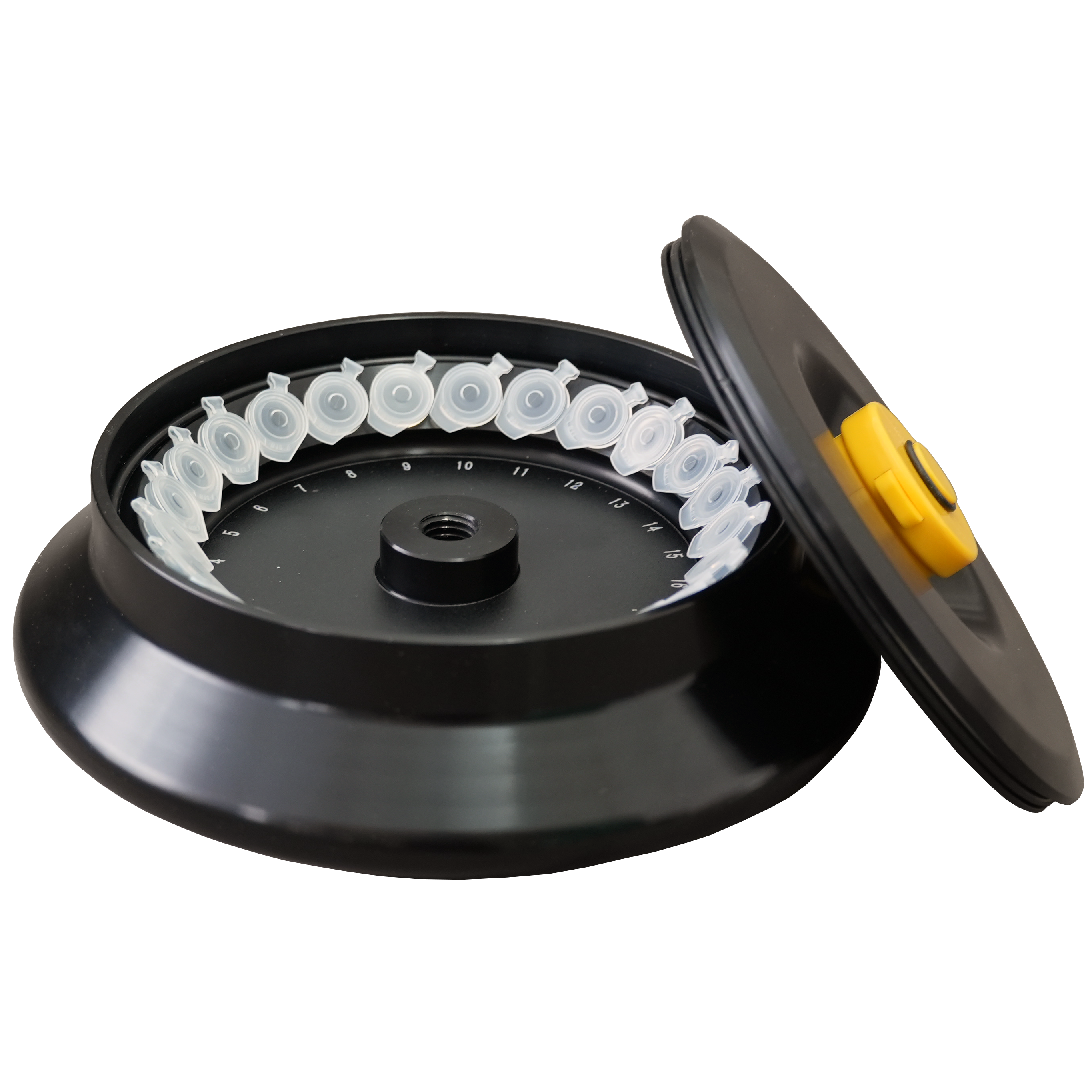

Angle Rotor	AAR1215-1		AAR1215-2		AAR2415-1		AAR2415-3

Max.Capacity	12×1.5/2.2ml		12×1.5/2.2ml		24×1.5/2.2ml		24×1.5/2.2ml
Max. Speed	21000rpm		21000rpm		18500rpm		18500rpm
Max. RCF	30053×g		29165×g		32898×g		32898×g
Angle	45°		45°		45°		45°
ØxL(mm)	11×39mm		11×39mm		11×39mm		11×39mm
Adaptor	A20136	12×1×0.5ml	A20136	12×1×0.5ml	A20136	24×1×0.5ml	A20136	24×1×0.5ml
	A20137	12×1×0.2ml	A20137	12×1×0.2ml	A20137	24×1×0.2ml	A20137	24×1×0.2ml

Angle Rotor	AAR4815		AA12X5	AA1210	AA2410

Max.Capacity	48×1.5/2.2ml		12×5ml	12×10ml	24×10ml
Max. Speed	14000rpm		16000rpm	15000rpm	10000rpm
Max. RCF	20792×g		19336×g	19840×g	11291×g
Angle	45°		50°	62°	62°
ØxL(mm)	11×39mm		14×51mm	16.5×78mm	16.5×78mm
Adaptor	A20136	48×1×0.5ml	-	-	-
Adaptor	A20137	48×1×0.2ml	-	-	-

Angle Rotor	AA1215		AA4X50		AA6X50-1		AA8X50-1

Max.Capacity	12×15ml		4×50ml		6×50ml		8×50ml
Max. Speed	14000rpm		14500rpm		14000rpm		13500rpm
Max. RCF	22634×g		20727×g		21538×g		22637×g
Angle	62°		61°		61°		61°
ØxL(mm)	16.5×103mm		29.5×96mm		29.5×96mm		29.5×96mm
Adaptor	A10138	12×1×10ml	A20114	4×1×15ml	A20114	6×1×15ml	A20114	8×1×15ml
	-		A20115	4×1×10ml	A20115	6×1×10ml	A20115	8×1×10ml
	-		A20116	4×1×5ml	A20116	6×1×5ml	A20116	8×1×5ml
	-		A20117	4×1×1.5/2ml	A20117	6×1×1.5/2ml	A20117	8×1×1.5/2ml

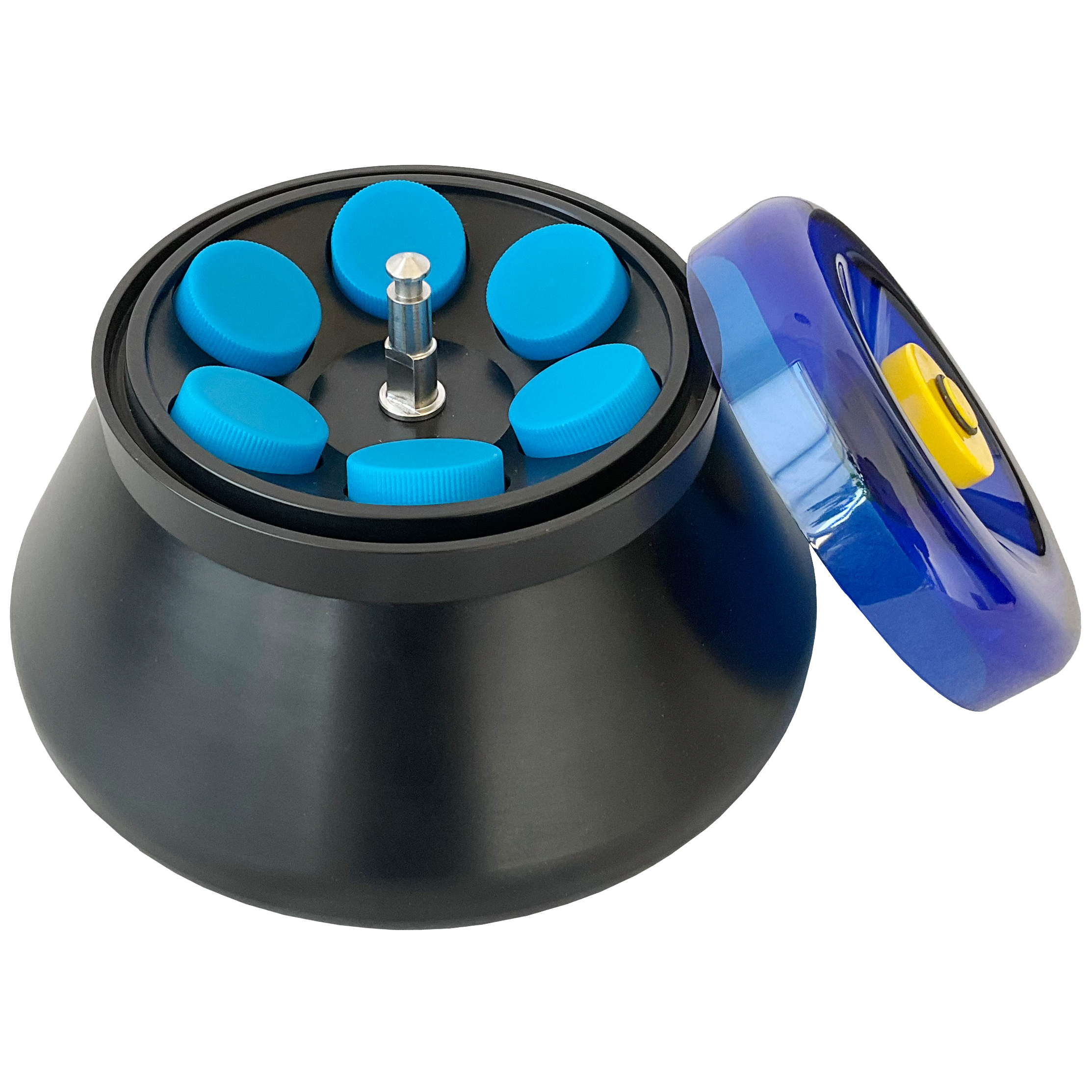

Angle Rotor	AA4100	AA6100	AA8100-2	AA6250

Max.Capacity	4×100ml	6×100ml	8×100ml	6×250ml
Max. Speed	12000rpm	11000rpm	10000rpm	10500rpm
Max. RCF	15759×g	17331×g	14402×g	18518×g
Angle	62°	45°	57°	60°
ØxL(mm)	38×110mm	38×112mm	38×112mm	62.5×116mm

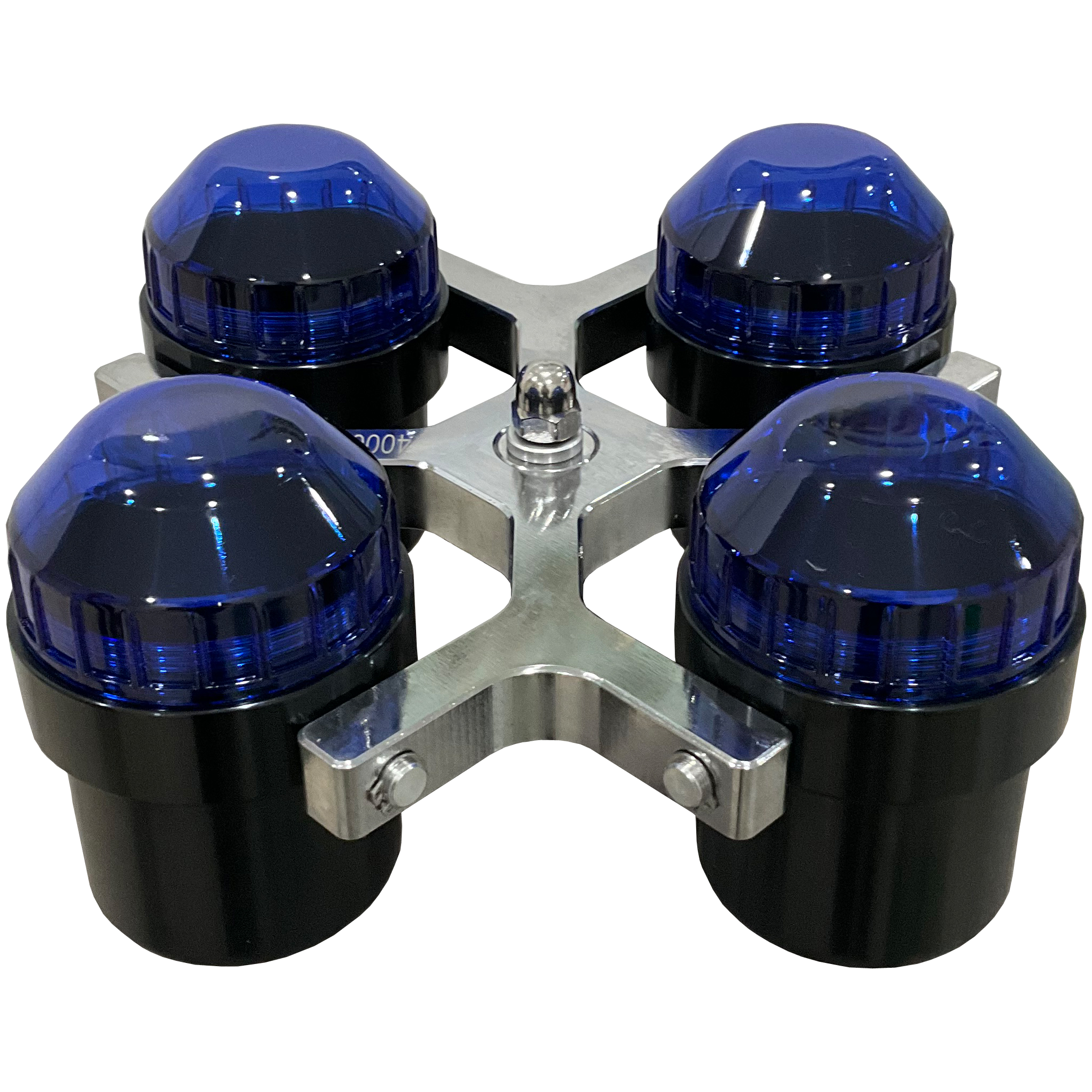

Swing Rotor	SG1000		SG7502		SG4250-1		SS4100

Cat. No.	B20634		B20426		B20427		B20411
Max.Capacity	4×1000ml		4×750ml		4×250ml		4×100ml
Max. Speed	4000rpm		4000rpm		4000rpm		4000rpm
Max. RCF	3867×g		3384×g		2990×g		3115×g
ØxL(mm)	101×130mm		101×111mm		63.5×90mm		-
Adaptor	A20105	4×1×1000ml	A21444	4×14×10/15ml	A10133	4×1×50ml	A20120	4×1×100ml
	A21444	4×14×10/15ml	A20745	4×7×50ml	A10434	4×4×15/10ml	A20218	4×2×50ml
	A20745	4×7×50ml	-	-	A10735	4×7×5/2ml (vacuum tube)	A20619	4×6×15ml

SG7501 Swing Rotor
Cat. No.	B20420		B20418		B20419
Max.Capacity	4×500ml		4×4×50ml		48×15ml
Max. Speed	4000rpm		4000rpm		4000rpm
Max. RCF	3572×g		3527×g		3617×g
ØxL(mm)	81×105mm		89×70.5×101mm		17×104mm
Adaptor	A10108	4×1×250ml	A20406	4×4×50ml	-
	A10109	4×1×100ml	A21207	4×12×15ml	-
	A10410	4×4×50ml	-	-	-
	A10811	4×8×15ml	-	-	-
	A10812	4×8×10ml	-	-	-
	A21413	4×14×5/2ml (vacuum tube)	-	-	-

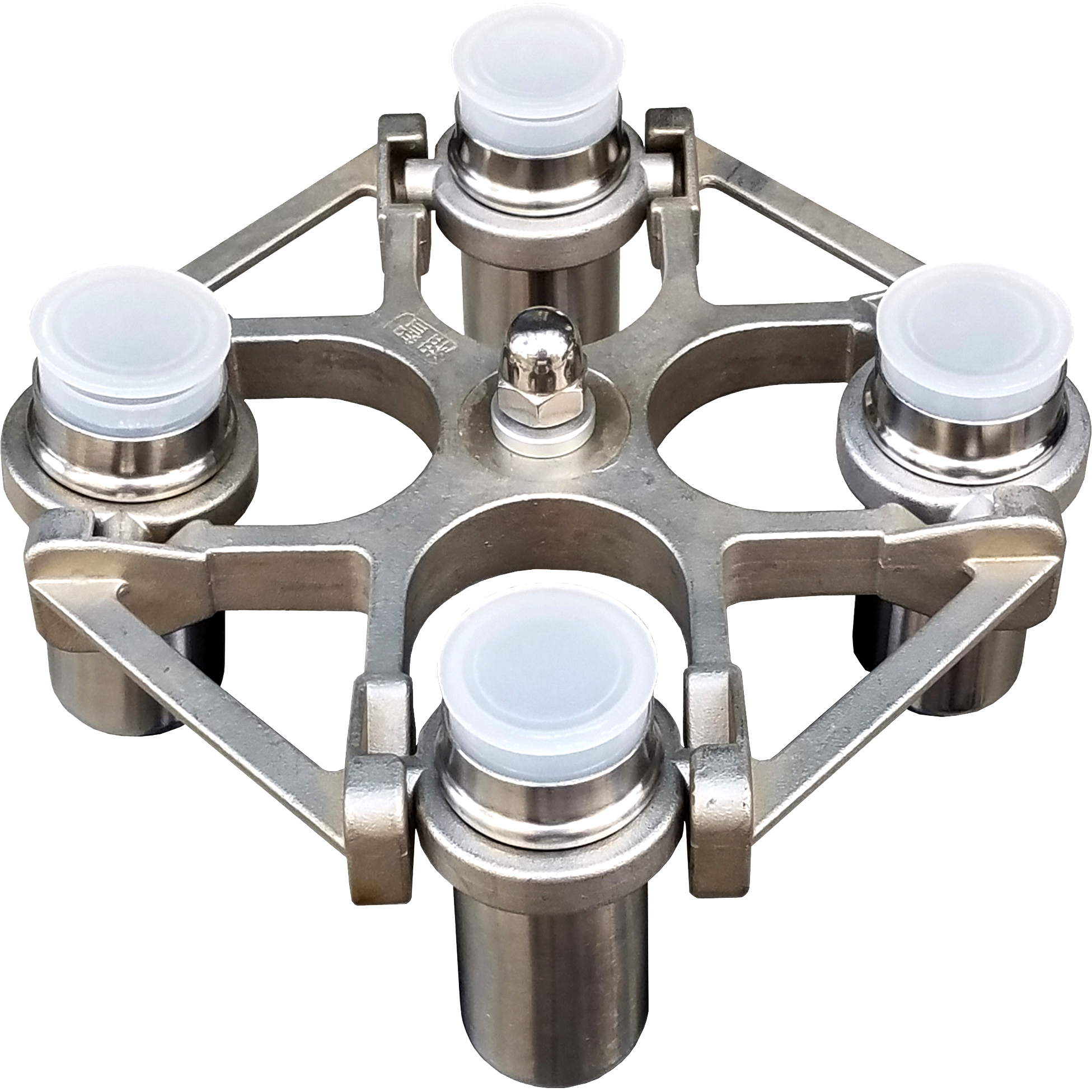

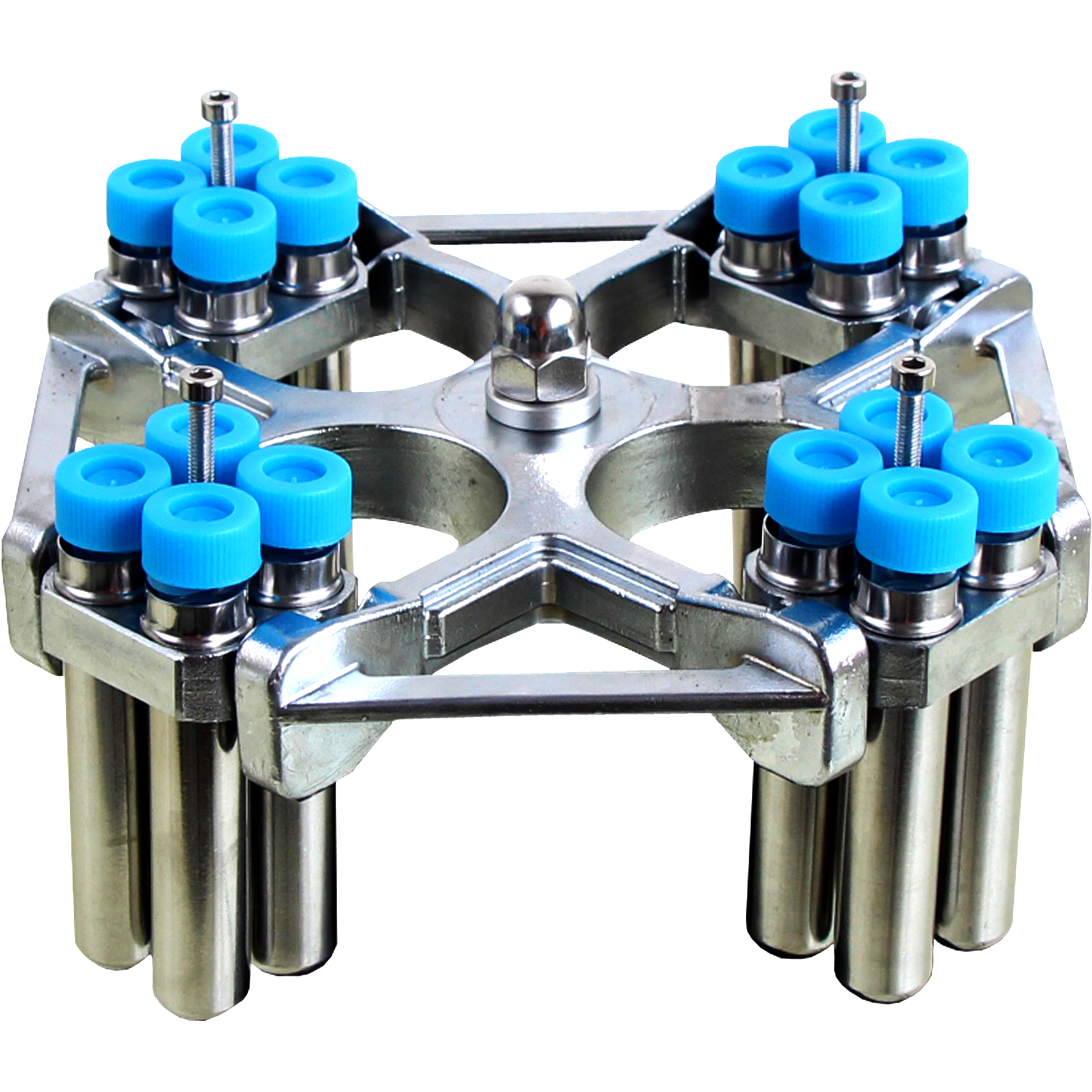

SS8100 Swing Rotor
Cat. No.	B10402	B10403		B10405	B10406	B10408	B10464
Max.Capacity	4×100ml	8×50ml		32×15ml	32×10ml	16×15ml	16×10ml
Max. Speed	5000rpm	4000rpm		4000rpm	4000rpm	4000rpm	4000rpm
Max. RCF	4633×g	3151×g		3130×g	3058×g	3130×g	3058×g
ØxL(mm)	42.5×100mm	30.5×92mm		18×92mm	18×88mm	18×92mm	18×88mm
Adaptor	-	A20114	8×1×15ml	A20121	4×8×5ml (vacuum tube)	A20121	4×4×5ml (vacuum tube)
	-	A20115	8×1×10ml	A20122	4×8×2ml (vacuum tube)	A20122	4×4×2ml (vacuum tube)
	-	A20116	8×1×5ml	A10123	4×8×1.5/2ml	A10123	4×4×1.5/2ml
	-	A20117	8×1×1.5/2ml	-	-	-	-

SS8100 Swing Rotor
Cat. No.	B20409	B20410
Max.Capacity	48×5ml	48×2ml
Max. Speed	4000rpm	4000rpm
Max. RCF	2945×g	2462×g
ØxL(mm)	13.5×86mm	13.5×58mm

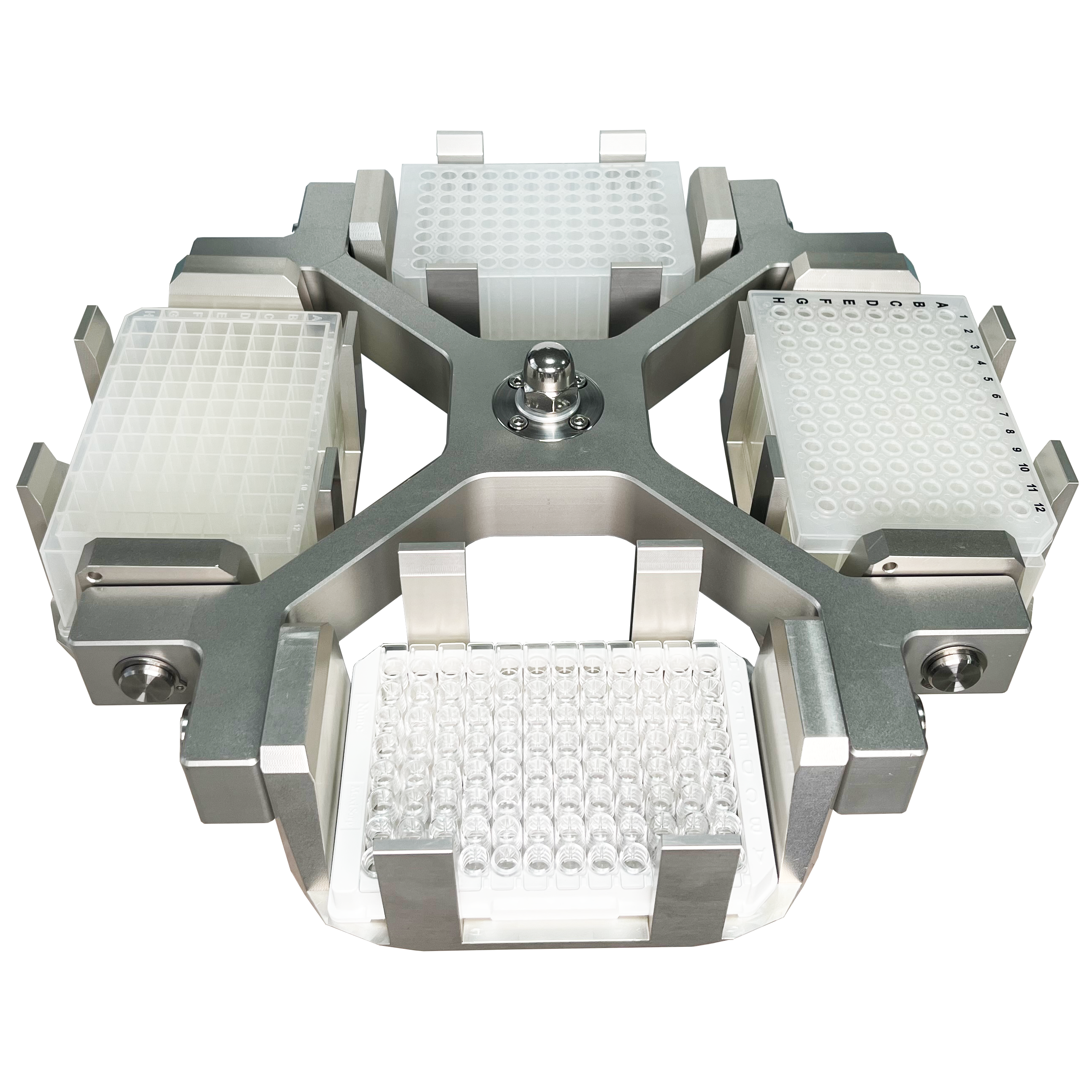

Swing Rotor	SA4496	SG2296

Cat. No.	B10436	B10235
Max.Capacity	4×4×96	2×2×96
Max. Speed	4000rpm	4000rpm
Max. RCF	2659×g	2390×g
ØxL(mm)	128×86×55mm	137×87×42mm
